Commercial & Industrial, Model Search List
Model	Model Description	Drawings Revit/DWG	Drive Type	Min Flow	Max Flow	Min Pressure	Max Pressure	Max Temperature

Commercial & Industrial, Model Search List
Commercial & Industrial, Model Search List
ROOF/WALL GRAVITY VENTS (HOODS)
			General Ventilation; Intake; Square Hood
IV	Intake Gravity Vent	0/0		0 cfm	67358 cfm	0.000 in wg	0.250 in wg	200 F

			General Ventilation; Intake; Louvered Hood
LIV	Louvered Gravity Intake Vent	0/0		0 cfm	85765 cfm	0.000 in wg	0.250 in wg	200 F

			General Ventilation; Exhaust (Relief)/ Intake (Supply); Round Hood
LQV	Gravity Relief Vent	0/22		0 cfm	17300 cfm	0.000 in wg	0.250 in wg	200 F
LQV-S	Gravity Supply Vent	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			General Ventilation; Exhaust (Relief); Square Hood

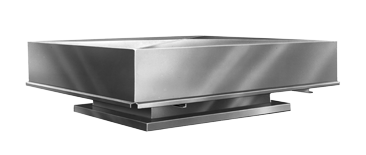

EV	Exhaust Gravity Vent	0/0		0 cfm	63000 cfm	0.000 in wg	0.250 in wg	200 F

			General Ventilation; Exhaust (Relief); Louvered Hood
LEV	Louvered Gravity Exhaust Vent	0/0		0 cfm	85765 cfm	0.000 in wg	0.250 in wg	200 F

			General Ventilation; Exhaust (Relief); Upblast (Butterfly Dampers)
UBGEC	Vent, Upblast	0/0		0 cfm	56548 cfm	0.000 in wg	0.250 in wg	200 F

			General Ventilation; Exhaust (Relief); Roof Vent Cap
L/LL CAP	Roof Caps (Former VQ/VQL model)	0/0		0 cfm	810 cfm	0.000 in wg	0.250 in wg	200 F

			General Ventilation; Exhaust (Relief); Wall Vent Cap
L/LL WCP	Wall Caps (Former VQ/VQL model)	0/0		0 cfm	1070 cfm	0.000 in wg	0.250 in wg	200 F

			Hurricane; Intake; Square Hood
IVH	Intake Gravity Vent Hurricane	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Hurricane; Intake; Louvered Hood
LIVH	Louvered Gravity Intake Vent hurricane	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Hurricane; Exhaust (Relief); Square Hood
EVH	Exhaust Gravity Vent Hurricane	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Hurricane; Exhaust (Relief); Louvered Hood
LEVH	Louvered Gravity Exhaust Vent Hurricane	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
