Commercial & Industrial, Model Search List
ROOF EXHAUST CENTRIFUGAL

 General Ventilation; Downblast; Round Hood
PVBelt Drive Centrifugal Roof Downblast Exhauster17/34Belt52 cfm40608 cfm0.000 in wg2.000 in wg135 F
PRNDirect Drive Centrifugal Roof Exhauster22/40Direct0 cfm2770 cfm0.000 in wg1.250 in wg135 F
PVDDirect Drive Centrifugal Roof Downblast Exhauster0/0Direct0 cfm6800 cfm0.000 in wg2.625 in wg135 F

 General Ventilation; Upblast; General Ventilation
PNURFBelt Drive Centrifugal Upblast Roof Exhauster21/42Belt117 cfm33374 cfm0.000 in wg5.000 in wg300 F
PDURFDirect Drive Centrifugal Upblast Roof Exhauster18/18Direct0 cfm8248 cfm0.000 in wg1.800 in wg300 F

 General Ventilation; Discharge-TH,UB, etc.; Centrifugal Blower
3000C1Single-Width Backward Inclined Belt Drive Class 10/0Belt0 cfm61128 cfm0.000 in wg5.500 in wg300 F
3000C2Single-Width Backward Inclined Belt Drive Class 20/0Belt0 cfm81504 cfm0.000 in wg11.000 in wg300 F
8100C1Single-Width Airfoil Centrifugal Belt Drive Class 1 (UL-762 Grease Rated)0/0Belt0 cfm78977 cfm0.000 in wg6.500 in wg300 F
8100C2Single-Width Airfoil Centrifugal Belt Drive Class 2 (UL-762 Grease Rated)0/0Belt0 cfm80015 cfm0.000 in wg11.000 in wg300 F
QBRBelt Drive Utility Blower (UL-762 Grease Rated)9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F
QBRDDirect Drive Utility Blower6/0Direct0 cfm6756 cfm0.000 in wg3.250 in wg250 F

 General Ventilation; Upblast; High Pressure

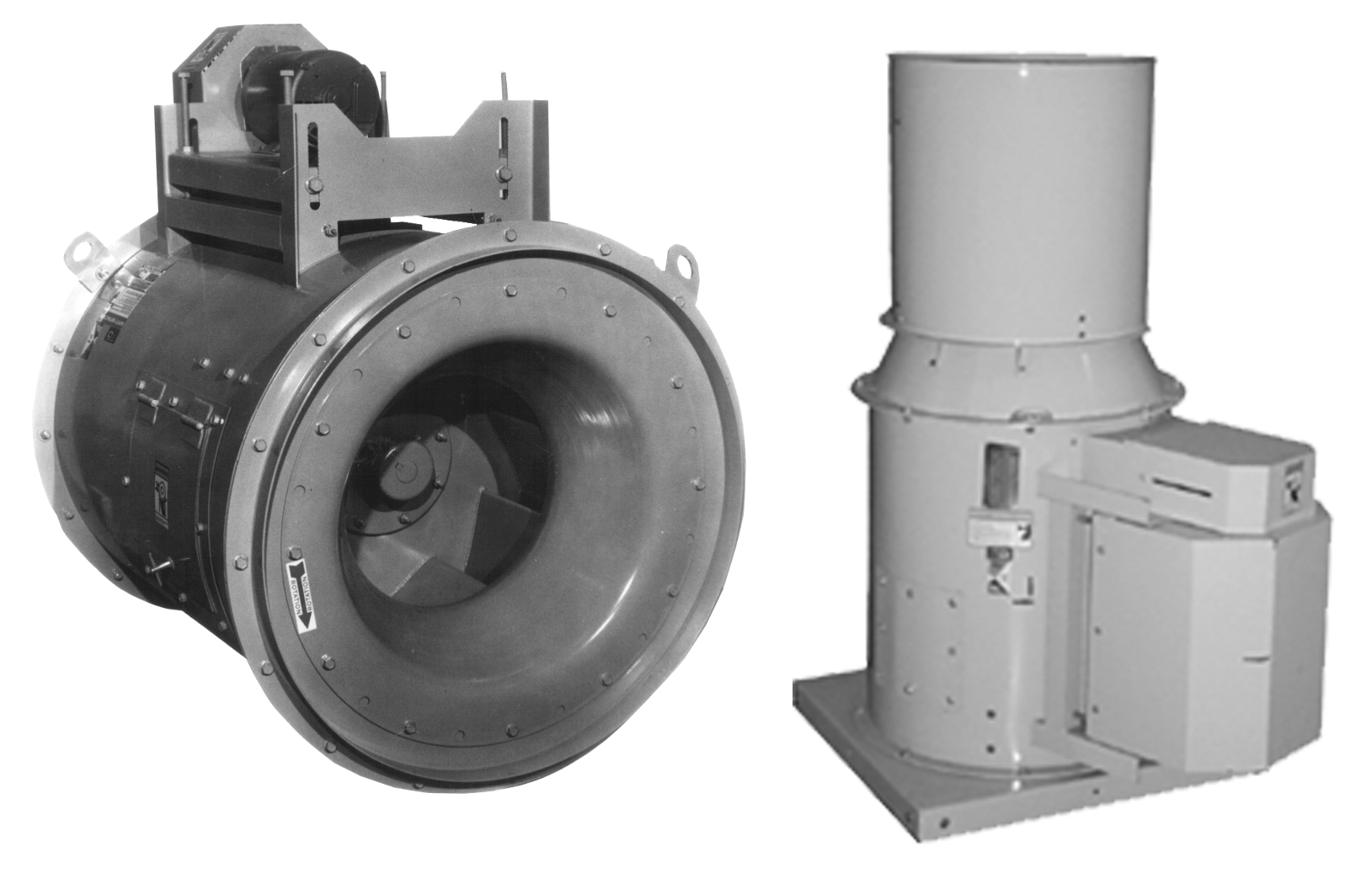

2100VC1Belt Drive InLine Airfoil Vertical Centrifugal Fan Class 10/0Belt663 cfm45182 cfm0.000 in wg6.000 in wg300 F
2100VC2Belt Drive InLine Airfoil Vertical Centrifugal Fan Class 20/0Belt663 cfm57072 cfm0.000 in wg9.000 in wg300 F

 General Ventilation; Downblast; Square Hood
PLBelt Drive Centrifugal Roof Downblast Exhauster14/28Belt200 cfm31810 cfm0.000 in wg1.000 in wg135 F

 General Ventilation; Downblast; Louvered Hood
PLZBelt Drive Centrifugal Roof Louvered Exhauster14/0Belt200 cfm31810 cfm0.000 in wg1.000 in wg135 F

 Restaurant; Upblast Restaurant Grease; UL762
PNURGBelt Drive Centrifugal Upblast Roof Exhauster (UL-762 Grease Rated)21/42Belt117 cfm33374 cfm0.000 in wg5.000 in wg300 F
PDURGDirect Drive Centrifugal Upblast Roof Exhauster (UL-762 Grease Rated)17/0Direct0 cfm5317 cfm0.000 in wg1.800 in wg300 F

 Restaurant; Centrifugal Blower; Discharge Upblast, UL762
8100C1Single-Width Airfoil Centrifugal Belt Drive Class 1 (UL-762 Grease Rated)0/0Belt0 cfm78977 cfm0.000 in wg6.500 in wg300 F
8100C2Single-Width Airfoil Centrifugal Belt Drive Class 2 (UL-762 Grease Rated)0/0Belt0 cfm80015 cfm0.000 in wg11.000 in wg300 F
QBRBelt Drive Utility Blower (UL-762 Grease Rated)9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F

 Smoke; Upblast; UL Smoke Exhaust Rated
PNUSEBelt Drive Centrifugal Upblast Roof Smoke Exhauster21/42Belt117 cfm33374 cfm0.000 in wg5.000 in wg300 F

 Laboratory Exhaust; Upblast Centrifugal; Laboratory Exhaust

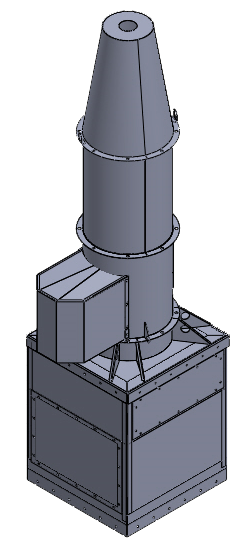

TIBLEBelt Drive Centrifugal Upblast Fume Lab Exhauster19/0Belt283 cfm17500 cfm0.000 in wg5.000 in wg200 F

 Laboratory Exhaust; Upblast Centrifugal; Dual Laboratory Exhaust

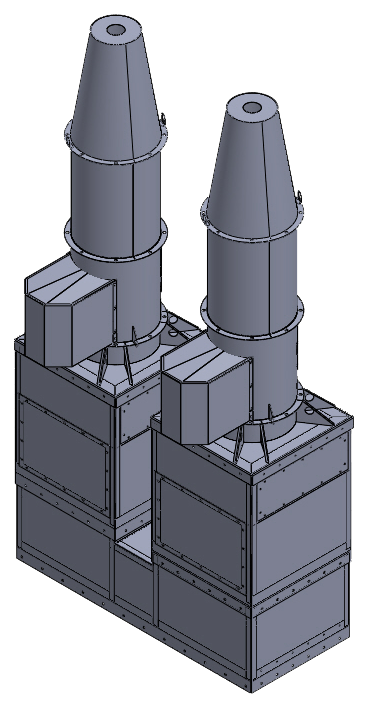

TIBLE2FBelt Drive Centrifugal Upblast Fume Lab Exhauster Dual Fans0/0Belt283 cfm35000 cfm0.000 in wg5.000 in wg200 F

 Hurricane; Downblast; Round Hood
PVHBelt Drive Centrifugal Roof Hurricane Downblast Exhauster0/0Belt52 cfm19043 cfm0.000 in wg2.000 in wg135 F
PRNHDirect Drive Centrifugal Roof Exhauster Hurricane0/8Direct0 cfm2770 cfm0.000 in wg1.250 in wg135 F
PVDHDirect Drive Centrifugal Roof Downblast Exhauster Hurricane0/0Direct0 cfm6800 cfm0.000 in wg2.625 in wg135 F

 Hurricane; Upblast; General Ventilation
PNURFHBelt Drive Centrifugal Upblast Roof Exhauster Hurricane16/32Belt117 cfm14622 cfm0.000 in wg5.000 in wg300 F
PDURFHDirect Drive Centrifugal Upblast Roof Exhauster Hurricane18/0Direct0 cfm8248 cfm0.000 in wg1.800 in wg300 F

 Hurricane; Discharge-TH,UB, etc.; Centrifugal Blower
3000C1HSingle-Width Backward Inclined Belt Drive Class 1 Hurricane0/0Belt0 cfm27468 cfm0.000 in wg5.500 in wg300 F
3000C2HSingle-Width Backward Inclined Belt Drive Class 2 Hurricane0/0Belt0 cfm36624 cfm0.000 in wg10.000 in wg300 F
8100C1HSingle-Width Airfoil Centrifugal Belt Drive Class 1 Hurricane0/0Belt0 cfm27468 cfm0.000 in wg6.500 in wg300 F
8100C2HSingle-Width Airfoil Centrifugal Belt Drive Class 2 Hurricane0/0Belt0 cfm35098 cfm0.000 in wg11.000 in wg300 F
QBRHBelt Drive Utility Blower Hurricane (UL-762 Grease Rated)9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F

 Hurricane; Discharge-TH, BH, etc.; Centrifugal Blower
QBRDHDirect Drive Utility Blower Hurricane5/0Direct0 cfm7000 cfm0.000 in wg3.250 in wg250 F

 Hurricane Restaurant; Roof Upblast Grease; UL762
PNURGHBelt Drive Centrifugal Upblast Roof Exhauster Hurricane (UL-762 Grease Rated)16/32Belt117 cfm14622 cfm0.000 in wg5.000 in wg300 F
PDURGHDirect Drive Centrifugal Upblast Roof Exhauster Hurricane (UL-762 Grease Rated)17/0Direct0 cfm5317 cfm0.000 in wg1.800 in wg300 F

 Hurricane Restaurant; Roof Upblast Centrifugal Blower; Discharge Upblast, UL762
8100C1HSingle-Width Airfoil Centrifugal Belt Drive Class 1 Hurricane0/0Belt0 cfm27468 cfm0.000 in wg6.500 in wg300 F
8100C2HSingle-Width Airfoil Centrifugal Belt Drive Class 2 Hurricane0/0Belt0 cfm35098 cfm0.000 in wg11.000 in wg300 F
QBRHBelt Drive Utility Blower Hurricane (UL-762 Grease Rated)9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F

 Hurricane Restaurant; Supply - Side Intake; Downblast Discharge - Blower
3000C1HSingle-Width Backward Inclined Belt Drive Class 1 Hurricane0/0Belt0 cfm27468 cfm0.000 in wg5.500 in wg300 F
3000C2HSingle-Width Backward Inclined Belt Drive Class 2 Hurricane0/0Belt0 cfm36624 cfm0.000 in wg10.000 in wg300 F
8100C1HSingle-Width Airfoil Centrifugal Belt Drive Class 1 Hurricane0/0Belt0 cfm27468 cfm0.000 in wg6.500 in wg300 F
8100C2HSingle-Width Airfoil Centrifugal Belt Drive Class 2 Hurricane0/0Belt0 cfm35098 cfm0.000 in wg11.000 in wg300 F
QBRHBelt Drive Utility Blower Hurricane (UL-762 Grease Rated)9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F

 Hurricane Smoke; Upblast; UL Smoke Exhaust Rated
PNUSEHBelt Drive Centrifugal Upblast Roof Smoke Exhauster Hurricane16/32Belt117 cfm14622 cfm0.000 in wg5.000 in wg300 F

 Seismic Rated; Upblast Centrifugal; General Ventilation
PNURFSCBelt Drive Centrifugal Upblast Roof Exhauster Seismic16/0Belt117 cfm14622 cfm0.000 in wg5.000 in wg300 F
PDURFSCDirect Drive Centrifugal Roof Exhauster Seismic0/0Direct0 cfm5317 cfm0.000 in wg1.800 in wg300 F

 Seismic Rated; Upblast Centrifugal; Restaurant, UL762
PNURGSCBelt Drive Centrifugal Upblast Roof Exhauster Seismic (UL-762 Grease Rated)16/0Belt117 cfm14622 cfm0.000 in wg5.000 in wg300 F
PDURGSCDirect Drive Centrifugal Upblast Roof Exhauster Seismic (UL-762 Grease Rated)17/0Direct0 cfm5317 cfm0.000 in wg1.800 in wg300 F
