Commercial & Industrial, Model Search List
WALL EXHAUST

 General Ventilation; Propeller; Panel Fan
DBBelt Drive Propeller Wall Exhaust0/0Belt0 cfm81650 cfm0.000 in wg2.000 in wg140 F
DCBelt Drive Propeller Wall Exhaust Fan1/12Belt1300 cfm27720 cfm0.000 in wg0.375 in wg135 F
DCHBelt Drive Propeller Wall Exhaust Fan, Heavy Duty0/0Belt15650 cfm77240 cfm0.000 in wg0.250 in wg135 F
DCKBelt Drive Propeller Wall Exhaust Fan0/16Belt2200 cfm73080 cfm0.000 in wg0.750 in wg135 F
KBelt Drive Propeller Wall Exhaust Fan0/16Belt590 cfm79330 cfm0.000 in wg1.250 in wg135 F
DMD-EPropeller Fan Direct Connected0/0Direct1000 cfm9478 cfm0.000 in wg0.500 in wg135 F

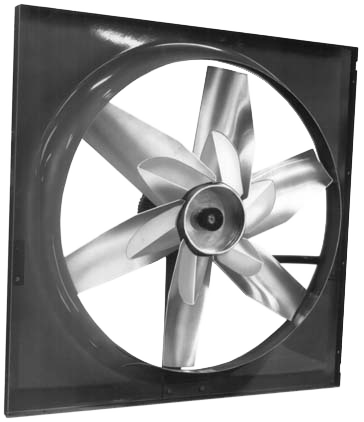

FNDirect Drive Propeller Wall Exhaust Fan13/18Direct0 cfm22400 cfm0.000 in wg1.000 in wg135 F
FQDirect Drive Propeller Wall Exhaust Fan, Quiet15/20Direct100 cfm17800 cfm0.000 in wg0.875 in wg135 F

 General Ventilation; Propeller; Wall Housing Panel Fan
DBWBPBelt Drive Propeller Wall Box Exhaust Fan0/0Belt0 cfm81650 cfm0.000 in wg2.000 in wg140 F
DCHWBPBelt Drive Propeller Wall Box Exhaust Fan, Heavy Duty0/0Belt15650 cfm77240 cfm0.000 in wg0.250 in wg135 F
DCKWBPBelt Drive Propeller Wall Box Exhaust Fan0/16Belt2200 cfm73080 cfm0.000 in wg0.750 in wg135 F
DCWBPBelt Drive Propeller Wall Box Exhaust Fan0/12Belt1300 cfm27720 cfm0.000 in wg0.375 in wg135 F
KWBPBelt Drive Propeller Wall Box Exhaust Fan0/12Belt590 cfm47400 cfm0.000 in wg1.250 in wg135 F
FNWBPDirect Drive Propeller Wall Box Exhaust Fan13/16Direct0 cfm22400 cfm0.000 in wg1.000 in wg135 F
FQWBPDirect Drive Propeller Wall Box Exhaust Fan, Quiet15/20Direct150 cfm17800 cfm0.000 in wg0.875 in wg135 F

 General Ventilation; Propeller; Wall Collar Panel Fan
DBWCPBelt Drive Propeller Wall Collar Exhaust Fan0/0Belt0 cfm81650 cfm0.000 in wg2.000 in wg140 F
DCHWCPBelt Drive Propeller Wall Collar Exhaust Fan, Heavy Duty0/10Belt15650 cfm77240 cfm0.000 in wg0.250 in wg135 F
DCKWCPBelt Drive Propeller Wall Collar Exhaust Fan0/16Belt2200 cfm73080 cfm0.000 in wg0.750 in wg135 F
DCWCPBelt Drive Propeller Wall Collar Exhaust Fan0/12Belt1300 cfm27720 cfm0.000 in wg0.375 in wg135 F
KWCPBelt Drive Propeller Wall Collar Exhaust Fan0/0Belt590 cfm47400 cfm0.000 in wg1.250 in wg135 F

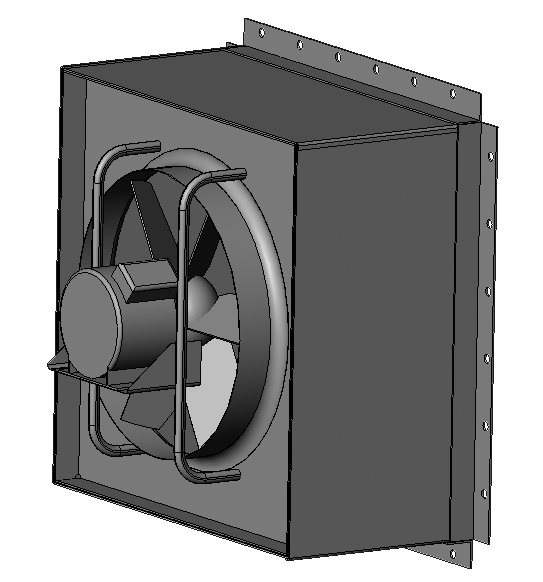

FNWCPDirect Drive Propeller Wall Collar Exhaust Fan13/16Direct0 cfm22400 cfm0.000 in wg1.000 in wg135 F
FQWCPDirect Drive Propeller Wall Collar Exhaust, Quiet15/19Direct150 cfm17800 cfm0.000 in wg0.875 in wg135 F

 General Ventilation; Centrifugal; General Ventilation Wall Fan
PNURFWBelt Drive Centrifugal Upblast Wall Exhauster16/32Belt117 cfm14622 cfm0.000 in wg5.000 in wg300 F
PDURFDirect Drive Centrifugal Upblast Roof Exhauster18/18Direct0 cfm8248 cfm0.000 in wg1.800 in wg300 F

 General Ventilation; Propeller; Aluminum Panel Fan
DCABelt Drive Propeller Wall Fan Aluminum0/0Belt1300 cfm27720 cfm0.000 in wg0.300 in wg13 F

 General Ventilation; Propeller; Slanted Wall Housing
DCWSBelt Drive Propeller Slant Wall Housing Fan0/0Belt1300 cfm27720 cfm0.000 in wg0.375 in wg135 F

 Restaurant; Centrifugal Wall Exhaust; Restaurant, UL762
PNURGWBelt Drive Centrifugal Upblast Wall Exhauster (UL-762 Grease Rated)16/32Belt117 cfm14622 cfm0.000 in wg5.000 in wg300 F
PDURGDirect Drive Centrifugal Upblast Roof Exhauster (UL-762 Grease Rated)17/0Direct0 cfm5317 cfm0.000 in wg1.800 in wg300 F

 Restaurant; Centrifugal Blower; Wall Exhaust, TH, BH Discharge UL762
8100C1Single-Width Airfoil Centrifugal Belt Drive Class 1 (UL-762 Grease Rated)0/0Belt0 cfm78977 cfm0.000 in wg6.500 in wg300 F
8100C2Single-Width Airfoil Centrifugal Belt Drive Class 2 (UL-762 Grease Rated)0/0Belt0 cfm80015 cfm0.000 in wg11.000 in wg300 F
QBRBelt Drive Utility Blower (UL-762 Grease Rated)9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F

 Smoke; Wall Discharge; UL Smoke Exhaust Rated
PNUSEWBelt Drive Centrifugal Upblast Wall Smoke Exhauster13/26Belt117 cfm11110 cfm0.000 in wg5.000 in wg300 F
