Commercial & Industrial, Model Search List
BLOWERS & PLENUM FANS

 General Ventilation; Centrifugal Blower; Backwardly Inclined Airfoil
8100C1Single-Width Airfoil Centrifugal Belt Drive Class 1 (UL-762 Grease Rated)0/0Belt0 cfm78977 cfm0.000 in wg6.500 in wg300 F
8100C2Single-Width Airfoil Centrifugal Belt Drive Class 2 (UL-762 Grease Rated)0/0Belt0 cfm80015 cfm0.000 in wg11.000 in wg300 F
QBRBelt Drive Utility Blower (UL-762 Grease Rated)9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F
QBRDDirect Drive Utility Blower6/0Direct0 cfm6756 cfm0.000 in wg3.250 in wg250 F

 General Ventilation; Centrifugal Blower; Backwardly Inclined Single Thickness
3000C1Single-Width Backward Inclined Belt Drive Class 10/0Belt0 cfm61128 cfm0.000 in wg5.500 in wg300 F
3000C2Single-Width Backward Inclined Belt Drive Class 20/0Belt0 cfm81504 cfm0.000 in wg11.000 in wg300 F

 General Ventilation; Centrifugal Blower; Forward Curved Wheel
FCFFC SWSI Blower0/0Belt300 cfm15000 cfm0.125 in wg4.000 in wg250 F

 General Ventilation; Plenum; Steel Wheel Arrangement 3
8800HC1Airfoil Centrifugal Plenum Fan0/0Belt0 cfm30944 cfm0.000 in wg8.000 in wg300 F

 General Ventilation; Plenum; Alum Star Wheel - Low Sound
8800STRHAirfoil Centrifugal Plenum W/Aluminum Star Wheel0/0Belt0 cfm79552 cfm0.000 in wg7.000 in wg135 F

 General Ventilation; Open Radial Material Handling; ARR/10 SWSI

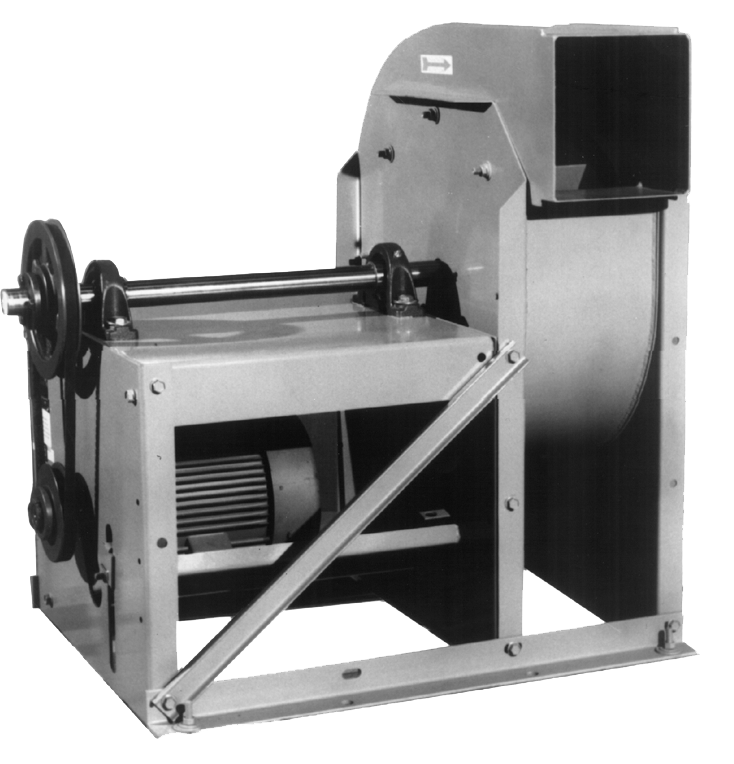

400MSingle Width Radial Blade Material Handling0/0Belt0 cfm7000 cfm0.000 in wg18.000 in wg200 F

 Smoke; Blower - Multiple Discharge; UL Smoke Exhaust Rated
8100SEC1Single-Width Airfoil Smoke Exhaust Centrifugal Belt Drive Class 10/0Belt0 cfm78977 cfm0.000 in wg5.500 in wg300 F
8100SEC2Single-Width Airfoil Smoke Exhaust Centrifugal Belt Drive Class 20/0Belt0 cfm80015 cfm0.000 in wg11.000 in wg300 F
QBRSEBelt Drive Emergency Smoke Exhauster9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F

 Hurricane; Discharge-TH, BH, etc.; Centrifugal Blower
3000C1HSingle-Width Backward Inclined Belt Drive Class 1 Hurricane0/0Belt0 cfm27468 cfm0.000 in wg5.500 in wg300 F
3000C2HSingle-Width Backward Inclined Belt Drive Class 2 Hurricane0/0Belt0 cfm36624 cfm0.000 in wg10.000 in wg300 F
8100C1HSingle-Width Airfoil Centrifugal Belt Drive Class 1 Hurricane0/0Belt0 cfm27468 cfm0.000 in wg6.500 in wg300 F
8100C2HSingle-Width Airfoil Centrifugal Belt Drive Class 2 Hurricane0/0Belt0 cfm35098 cfm0.000 in wg11.000 in wg300 F
QBRHBelt Drive Utility Blower Hurricane (UL-762 Grease Rated)9/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F

 Hurricane; Discharge-TH,UB, etc.; Centrifugal Blower
QBRDHDirect Drive Utility Blower Hurricane5/0Direct0 cfm7000 cfm0.000 in wg3.250 in wg250 F

 Hurricane Smoke; Roof Exhaust Centrifugal; UL Smoke Exhaust Rated
8100C1SHSingle-Width Airfoil Smoke Exhaust Centrifugal Belt Drive Class 1 Hurricane0/0Belt0 cfm27468 cfm0.000 in wg6.500 in wg300 F
8100C2SHSingle-Width Airfoil Smoke Exhaust Centrifugal Belt Drive Class 2 Hurricane0/0Belt0 cfm35098 cfm0.000 in wg11.000 in wg300 F
QBRSEHBelt Drive Emergency Smoke Exhauster Hurricane8/0Belt0 cfm23230 cfm0.250 in wg4.250 in wg250 F
